Configure Connection Group Dialog Box

AdminStudio 2025 | 29.0 | Application Manager

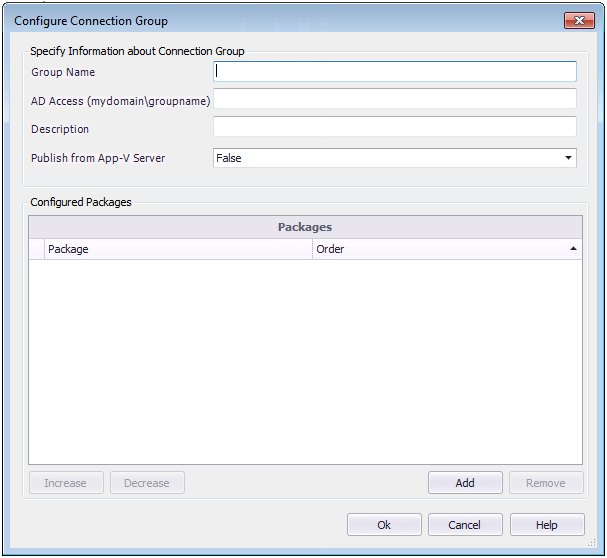

On the Configure Connection Group dialog box, which is opened by clicking Add on the App-V Server Connection Groups dialog box, you enter the properties for an App-V Server connection group and add App-V 5.0 packages to it.

The Configure Connection Group dialog box includes the following properties:

Property	Description
Group Name	Enter a name to identify this App-V Server connection group.
AD Access	Enter the name of the Active Directory group that will have permission to access this connection group.
Description	Enter a description of this connection group.
Publish from App-V Server	Select `True` or `False` to specify whether to publish this connection group from the App-V Server.
Configured Packages	Lists the App-V 5.0 packages that have been added to this connection group. To add an App-V 5.0 package to this list, click Add.
Add	Click to `Add` to open the `Add Connection Group Packages` dialog box, where you can add App-V 5.0 packages to this connection group.
Remove	Click to remove the selected App-V 5.0 package from this connection group.
Increase Descrease	The order of packages in the connection group is important. This determines the order in which the package contents are merged. So, if there was a conflict (example: same registry value), the content of the first package would be used. Use the `Increase` and `Decrease` buttons to change the order of the selected package.
